Welcome to EBL-100L pattern gallary

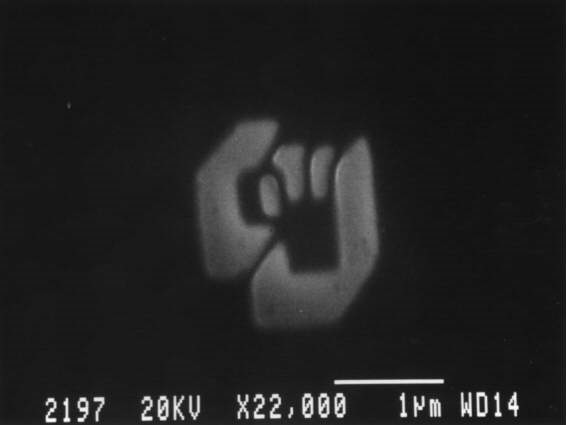

EBL-100L nanowriter has been installed and used in our laboratory for over 10 years. With its unique function, we can generate a wide variety of patterns on resist, (One of the example is the micro-scale City University logo shown at the left column) and tranferred them to the underlying layers using our in-house microfabrication facilities.
 |
 |

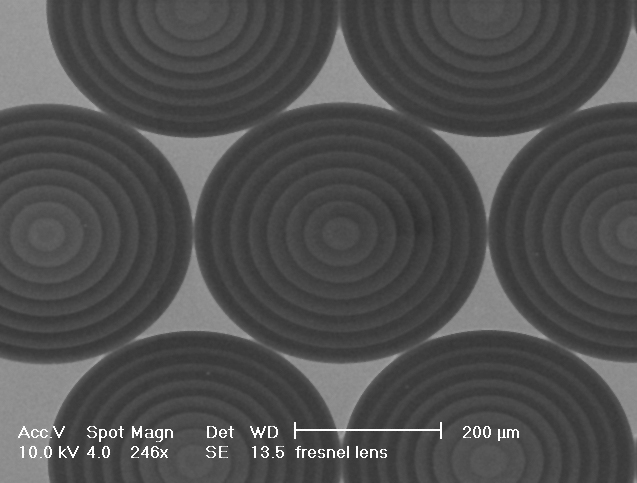

| Fresnel lens array
|
a section of Fresnel len |
 |
 |
| 30nm Au/Pd metal lines on Si wafer
|
Curved pattern on PMMA resist |
 |
 |
| MSM diode on coplanar strips
|
Nanobox array
|
 |
 |
| Dots array on PMMA resist |
AFM Calibration mark
|
 |
 |
| City U logo digital hologram |
Nanowire electrode patterning |
 |
 |
500nm period grating for DWDM waveguide filter |
Single mode polymer waveguide |
 |
 |
a section of polymer AWG |
200nm hexagonal dots array |
